Liberti > 5700 Series
Manufactured under license from LIBERTI, USA

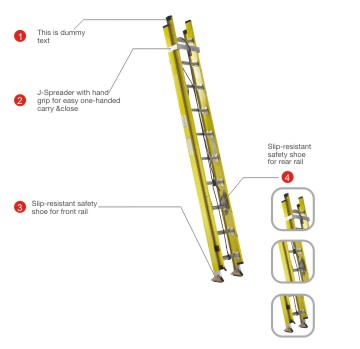

  • Durable non-conductive fiberglass side rails in high visibility safety yellow
  • Riveted rung to rail design maintains continuous strength of fibers and allows for easy repair
  • Slip-resistant serrated round rungs for safe climbing
  • Top cross over bar allows for ladder to be raised and lowered from front and provides torsional stiffness
  • Premium heavy-duty rug locks for durability
  • Large heavy-duty pivot feet with slip-resistant rubber pads and ice pick
  • Available Sizes: 16', 20', 24', 28' & 32'
Model No. Size Approx.
Width
Approx.
Spread
Maximum Reach Highest Standing Level

Mts. Ft.
Mts. Ft.
Mts. Ft.
Mts. Ft.
Mts. Ft.
1504
1.22 4
0.53 1.74
0.76 2.5
2.43 8
0.6 2
1506
1.82 6
0.62 2.03
1.08 3.54
3.04 10
1.22 4
1508
2.43 8
0.71 2.33
1.39 4.56
3.65 12
1.82 6
1510
3.04 10
0.8 2.62
1.7 5.58
4.26 14
2.43 8
1512
3.65 12
0.9 3
2 6.6
4.87 16
3.04 10
1514
4.26 14
0.97 3.2
2.33 7.64
5.48 18
3.65 12
1516
4.87 16
1.06 3.5
2.64 8.66
6.09 20
4.26 14
Model No. Size Approx.
Width
Approx.
Spread
Maximum Reach Highest Standing Level

Mts. Ft.
Mts. Ft.
Mts. Ft.
Mts. Ft.
Mts. Ft.
T1504
1.22 4
0.53 1.74
0.92 3
2.43 8
0.6 2
T1506
1.82 6
0.62 2.03
1.278 4.16
3.04 10
1.22 4
T1508
2.43 8
0.71 2.33
1.63 5.35
3.65 12
1.82 6
T1510
3.04 10
0.8 2.62
1.98 6.5
4.26 14
2.43 8
T1512
3.65 12
0.9 3
2.34 7.68
4.87 16
3.04 10
Model No. Size Approx.
Width
Approx.
Spread
Maximum Reach Highest to Platform

Mts. Ft.
Mts. Ft.
Mts. Ft.
Mts. Ft.
Mts. Ft.
P1504
1.82 6
0.62 2.03
1.08 3.54
3.04 10
1.22 4
P1506
2.43 8
0.71 2.33
1.40 4.6
3.65 12
182 6
P1508
3.04 10
0.80 2.65
1.70 5.57
3.26 14
243 8
P1510
3.65 12
0.90 3.00
2.00 6.56
4.87 16
3.04 10
P1512
4.26 14
0.98 3.21
2.34 7.67
5.48 18
3.65 12
P1514
4.87 16
1.07 3.50
2.64 8.66
6.09 20
3.65 12
